Machine For U Shape Forming Of Insulation
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| Condition: | New | Insertion speed: | 0.5 to 0.7 second per slot |
|---|---|---|---|
| Material: | DMD, DM, Polyester film | The Usual Size: | 8mm,10mm,12mm,15mm |
| Machine Color: | White or Per Customer Requirement | After sales: | Engineer available for oversea support |
Machine For U Shape Forming Of Insulation WIND-300-WF

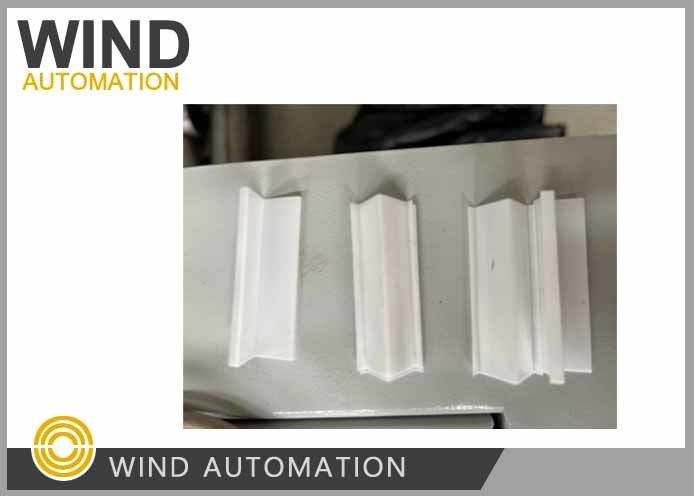

This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by step motor.
(1) Specification
| Cycle time | 100pcs/min |
| Cutting thickness | 0.1~0.7mm (can be custom made) |
| Feeding length |
Varies (Step motor can be custom made) |
| Total power | 0.3KW |
| Power supply | 220V 50/60HZ |
| Weight | 150KG |
| Dimension | 700x550x1100mm |
(2) Feature
Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing
Simple and easy to operate,
No skilled operator needed
Wide application for DMD, NMN,Nomex, Mylar,Fiber,Fiberglass reionformed polyester and so on
No regular maintenance needed
(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc
DMD, NMN,Nomex, Mylar,Fiber and so on
Question and Answer:
Question:
our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine
can form this wedge or not.
Answer:
in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,
The wedge should be heated on machine before formed,
Your wedge is NMN with 0.51mm can be custom made to be formed,
Please click below photo to view video
